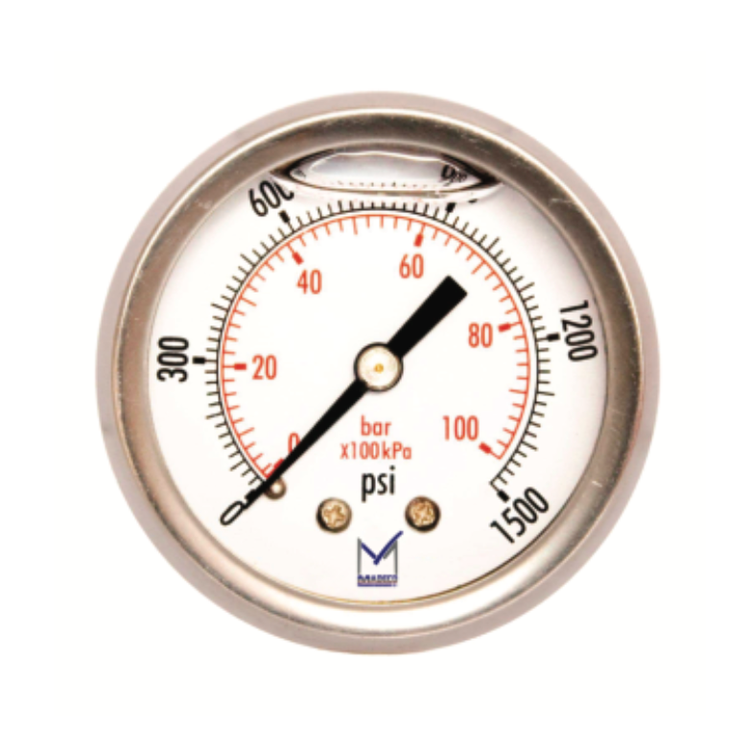

گیج فشار روغنی صفحه 1۰0 میلیمتر MADECO canada   PI54B4

■Accuracy class 2.5% for 40 and 50 mm dials;

1.6% for 63 to 250 mm dials;

1% (option)

for 100 to 250 mm

■Pressure element Brass C-type or helical type

Stainless steel 304 and 316 (option)

■Process connection

Brass back & bottom

NS 63: ¼ BSP , NS 100, 160: ½ BSP, NPT (option)

■Socket & connection

Brass, Stainless steel 304 and 316 (option)

■Window Glass, Plexiglass, Acrylic, (option)

■Permissible temperature

Ambient:

-20 ... +60 °C

+120 °C

■Movement Copper alloy

■Pointer Aluminium, black

■Dial Aluminium, white, black lettering,

■ Range Medium :

0...10 to 0...15.000 psi;

0...60 to 0...100.000 kPa;

0...0.6 to 0...1000 bar

Vacuum & compound ranges

are available. single or double scale dials.

-دارای یک سال گارانتی تعویض

-عضو وندور بلند نفت

-قابلیت راستی آزمایی با کد اصالت از سایت سازنده
