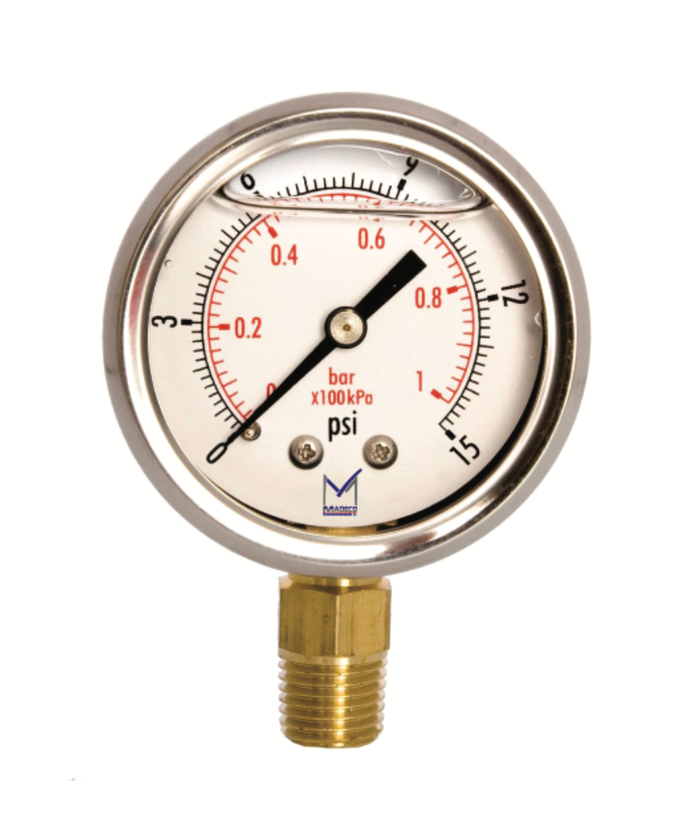

گیج فشار روغنی صفحه 60 میلیمتر MADECO canada PI52T4
Brand
MADECO canada
Model
PI52T4
connection
1/4 (از زیر) 1/4" BSP Bottom
Body material
Stainless steel 304
Range
Scale range vacuum up to 1000 bar
گیج فشار روغنی صفحه 60 میلیمتر MADECO canada PI52T4
■Accuracy class 2.5% for 40 and 50 mm dials;
1.6% for 63 to 250 mm dials;
1% (option)
for 100 to 250 mm
■Pressure element Brass C-type or helical type
Stainless steel 304 and 316 (option)
■Process connection
Brass back & bottom
NS 63: ¼ BSP , NS 100, 160: ½ BSP, NPT (option)
■Socket & connection
Brass, Stainless steel 304 and 316 (option)
■Window Glass, Plexiglass, Acrylic, (option)
■Permissible temperature
Ambient:
-20 ... +60 °C
+120 °C
■Movement Copper alloy
■Pointer Aluminium, black
■Dial Aluminium, white, black lettering,
■ Range Medium :
0...10 to 0...15.000 psi;
0...60 to 0...100.000 kPa;
0...0.6 to 0...1000 bar
Vacuum & compound ranges
are available. single or double scale dials.
-دارای یک سال گارانتی تعویض
-عضو وندور بلند نفت
-قابلیت راستی آزمایی با کد اصالت از سایت سازنده
