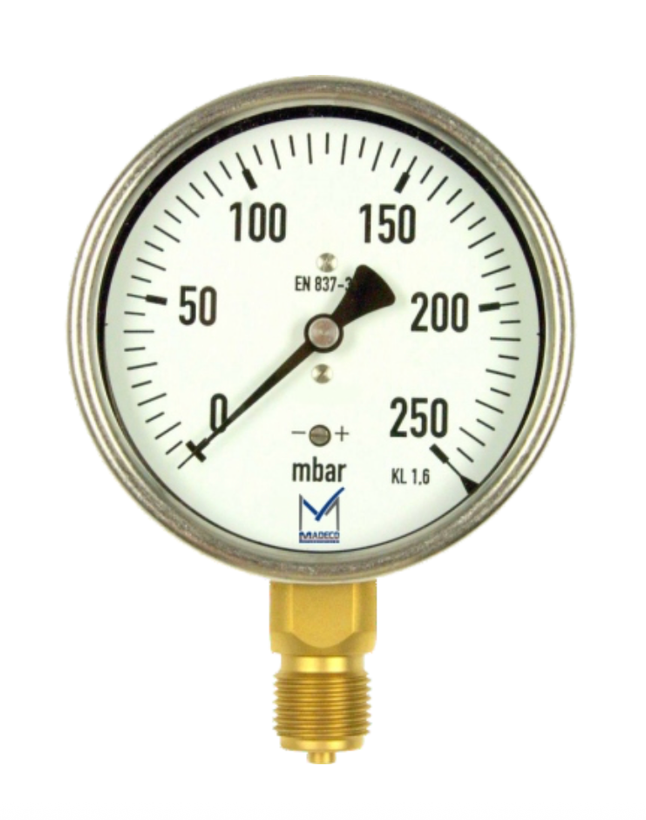

گیج فشار کپسول صفحه 100 میلیمتر MADECO canada PL14T4
Brand
MADECO canada
Model
PL14T4
connection
1/2 (از زیر) : 1/2" BSP bottom
Body material
Stainless steel 304
Range
Scale ranges up to 0 … 600mbar
گیج فشار کپسول صفحه 100 میلیمتر MADECO canada PL14T4
Accuracy class Pressure element Process connection
Socket & connection NS 63: 1.6 NS 100, 160: 1.6% 1% (option)
Brass and
Stainless steel 316L Capsul type
Hastelloy, Monel, Tantalum(option)
Brass and Stainless steel 316L back & bottom
NS 63: ¼ NPT , NS 100, 160: ½ NPT, BSP (option)
Brass and 316L st. steel treated
Window Operating temperature Glass, Laminated safety glass Anti-glare & Anti-static
Ambient: -4°F to +140°F (-20°C to +60°C)
Medium: +212°F (+100°C) maximum
Movement
Stainless steel
Zero adjustment in front on dial
Pointer Aluminium, black
Dial Aluminium, white, black lettering,
Protection
Weather resistant (NEMA 3 / IP54)
With case filling (NEMA 4X / IP66)■ Range
2½" (63mm): 0...16" WC (40 mbar) to 0...250" WC (600 mbar)
4" (100mm): 0...6" WC (16 mbar) to 0...250" WC (600 mbar)
6" (160 mm): 0...1" WC (2.5 mbar) to 0...250" WC (600 mbar)
or other equivalent units of pressure or vacuum
-دارای یک سال گارانتی تعویض
-عضو وندور نفت
-قابلیت راستی آزمایی با کد اصالت از سایت سازنده
