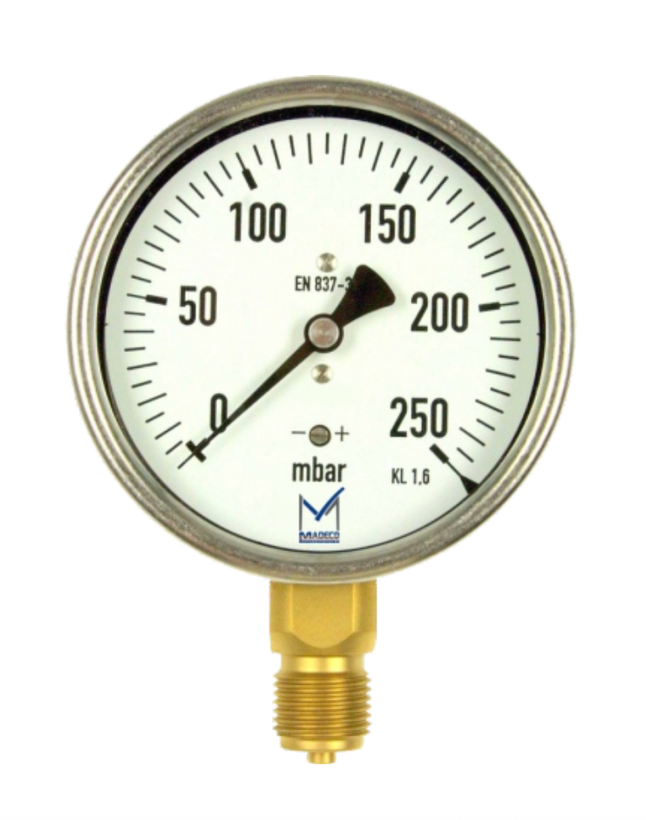

گیج فشار کپسول صفحه 60 میلیمتر MADECO canada   PL12T4

گیج فشار کپسول صفحه 60 میلیمتر MADECO canada PL12T4


Accuracy class Pressure element Process connection

Socket & connection NS 63: 1.6 NS 100, 160: 1.6% 1% (option)

Brass and

Stainless steel 316L Capsul type

Hastelloy, Monel, Tantalum(option)

Brass and Stainless steel 316L back & bottom

NS 63: ¼ NPT , NS 100, 160: ½ NPT, BSP (option)

Brass and 316L st. steel treated

Window Operating temperature Glass, Laminated safety glass Anti-glare & Anti-static

Ambient: -4°F to +140°F (-20°C to +60°C)

Medium: +212°F (+100°C) maximum

Movement

Stainless steel

Zero adjustment in front on dial

Pointer Aluminium, black

Dial Aluminium, white, black lettering,

Protection

Weather resistant (NEMA 3 / IP54)

With case filling (NEMA 4X / IP66)■ Range

2½" (63mm): 0...16" WC (40 mbar) to 0...250" WC (600 mbar)

4" (100mm): 0...6" WC (16 mbar) to 0...250" WC (600 mbar)

6" (160 mm): 0...1" WC (2.5 mbar) to 0...250" WC (600 mbar)

or other equivalent units of pressure or vacuum

-دارای یک سال گارانتی تعویض

-عضو وندور نفت

-قابلیت راستی آزمایی با کد اصالت از سایت سازنده
